PRODUCT MODEL
|
EB-612
|
EB-674
|

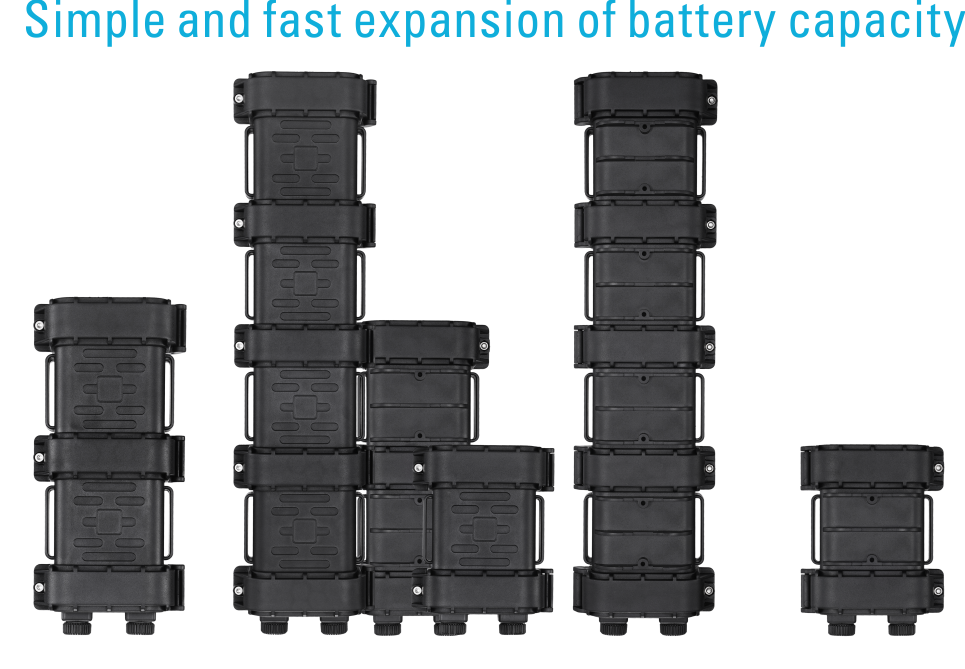

EB-K6 （Multiple Groups Box）
|
|
Battery Capacity:
|
8400mAh / 7.4V
|
|
|
Solar Panels:
|
12-18V / 7-20W
|
|
|
Maximum Charging Current:
|
1000mA（DC18V）
|
|
|
Overcharge Protection Voltage:
|
8.4V
|
|
|
Overdischarge Protection Voltage:
|
6.0V
|
|
|
Input Voltage:
|
12~18V
|
|
|
Output Voltage:
|
DC 12V / 1A
|
DC 7.4V / 2A
|
|
|
Standby Power:
|
<1mA
|
<10uA
|
|
|
Connector:
|
|
|
|
|
Installation Mode:
|
Strap, Tripod nail
|
|
Operating Temperature:
|
-30°C~+65°C
|
|
Operating Humidity:
|
10% ~ 90%RH
|
|
Waterproof Grade:
|
IP68 (Dust proof / Submerging test)
|
|

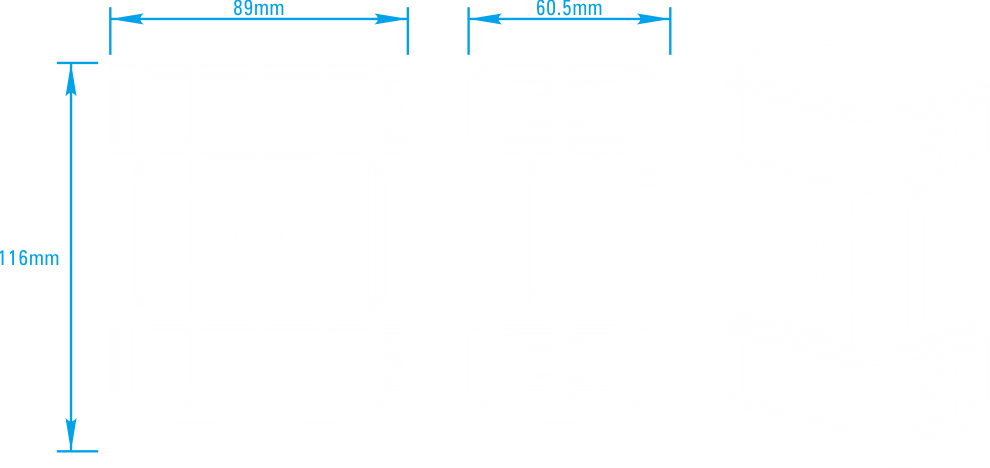

Dimension:
|
89 x 60.5 x 116mm
|
89 x 60.5 x 84.5mm
|
|
Combined Dimension:
|
89×60×31.5+(84.5×n)mm
|
|
Net Weight:
|
200g
|
150g
|
|
Gross Weight:
|
240g
|
190g
|
|
| |
|
|
|
|
|
|
|
|
|
 |
|
