| 1080P/30fps Full HD Video Recording, 1080P/720P/480P is Optional. |
| |
|
 |
 |
| 720P/30FPS |
1080P/30FPS |
|
| |
|
|
|
Using 4ea 940nm high bright LED, ultra-low red exposure, constant current drive,
light source homogenization. Makes the light more uniform,stable and reliable. |
 |
 |
 |
| Constant current drive, light source homogenization |
Spectrogram |
Light angle |
| |
|
 |
 |
| Not processed (46ea, 5mm, IR LED) |
Processed (4ea, 1.5W, IR LED+Lens) |
|
| |
|
|
|

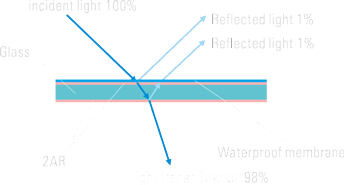

Double-sided optical penetration + waterproof coating, to prevent effecting image quality for water entering
in the glass. Effectively prevent light refraction, scattering, enhance the image anti fog ability . |
 |
 |
| |
|
 |
 |
| Other Camera |
EREAGLE Camera |
|
| |
|
|
|
| PRODUCT MODEL |
A9Pro |
| Image/Video/Audio |
| Photo Resolution: |
24M / 12M / 8M / 4M / 2M |
| Shooting Number: |
1~5 |
| Video Resolution: |
2560x1440:30FPS / 1920x1080:30FPS / 1280x720:30FPS / 640x480:30FPS |
| Video length: |
1~240s |
| Lens: |
2.8mm HD fixed lens (FOV:56°, F2.0) |
| Trigger time: |
< 0.5 Sec |
| Shooting mode: |
Photo / Video / Photo+Video |
| Display Screen: |
2.4 "LCD Screen, definition:320 x 240 |
| Microphone: |
48dB high sensitivity sound collection |
| Buzzer: |
- |
| Trigger Alarm |
| PIR Sensing Angle: |
2 PIR Sensor: Horizontal: 50°, 2+5 area Fresnel Lens, each lens covers 10° |
| PIR Sensing Distance: |
20M / 65.62ft (at 77℉/ 25℃) |
| PIR Sensitivity: |
Auto / High / Middle / Low |
| Trigger Interval: |
00:00-59:59 Optional (Default: 01:00) |
| Night vision |
| Light Source: |
Highlight IR LED, 850nm, Constant Current: 700mA |
| IR Flashlight Distance: |
30M / 98ft |
| Day/Night Mode: |
Day/night, Auto Switching, Built-in IR-CUT |
| User Interface Stamp and File Type |
| Stamp: |
ON / OFF; Camera name, Shooting date, Moon phase, Temperature, Battery Power |
| Timer |
| Timer Switch: |
ON / OFF |
| Time Interval Setting: |
Three time frame can be set every day. |
| Timer Interval: |
0~24 Hour |
| Data Storage |
| Storage Medium: |
TF Card, 4G~128G (Class 10) |
| TF Card Cycle Save: |
ON / OFF |
| Power Supply and Power Consumption |
| Battery Powered: |
8xAA Battery (1.5V) |
| Standby Time: |
8~10 Month (8xAA /1.5V) |
| External Power Supply: |
DC 12V / 2.0A |
| Standby Power: |
<100uA (0.00008A / 6V) |
| Power Consumption: |
150 mA (800mA LED ON) |
| Others |
| Connector: |
DC input, SD card, USB port, Button |
| Installation Mode: |
Strap, Tripod nail |
| Operating Temperature Humidity: |
-20~+60℃/ 30% ~ 90%RH |
| Storage Temperature Humidity: |
-40~+85℃ / 0% ~ 90%RH |
| Waterproof Grade: |
IP68 (Dust proof / Submerging test) |
| Dimension: |
143 x103 x 72mm |
| Net Weight: |
240g |
| Gross Weight: |
350g |
| Certificate: |
CE, RoHS |
|
| |
|
|
|
|
|
|
|
|
|
 |
|
