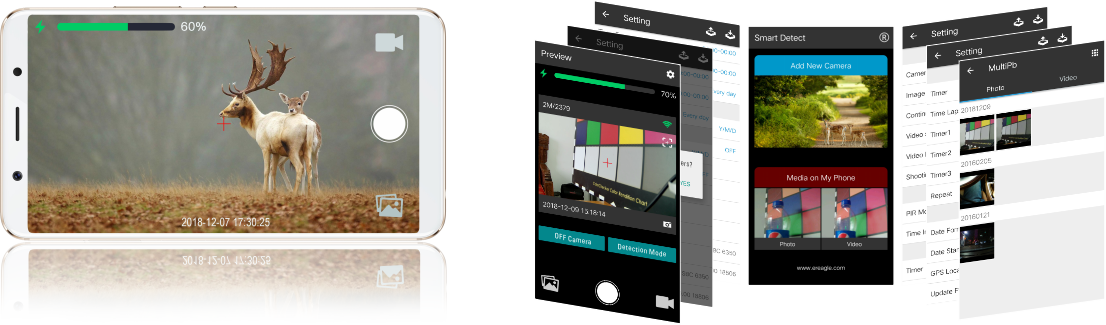

Smart Detect mobile application
Video Preview / Test Shooting / Parameter Setting / Files Management

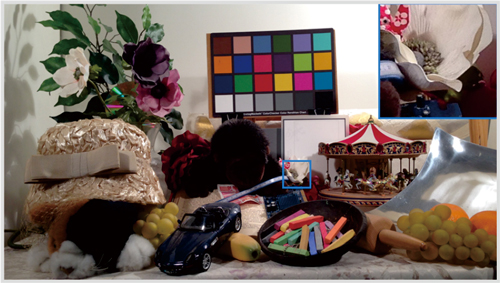

1080P/30fps Full HD Video Recording, 1080P/720P/480P is Optional.

720P/30FPS 1080P/30FPS

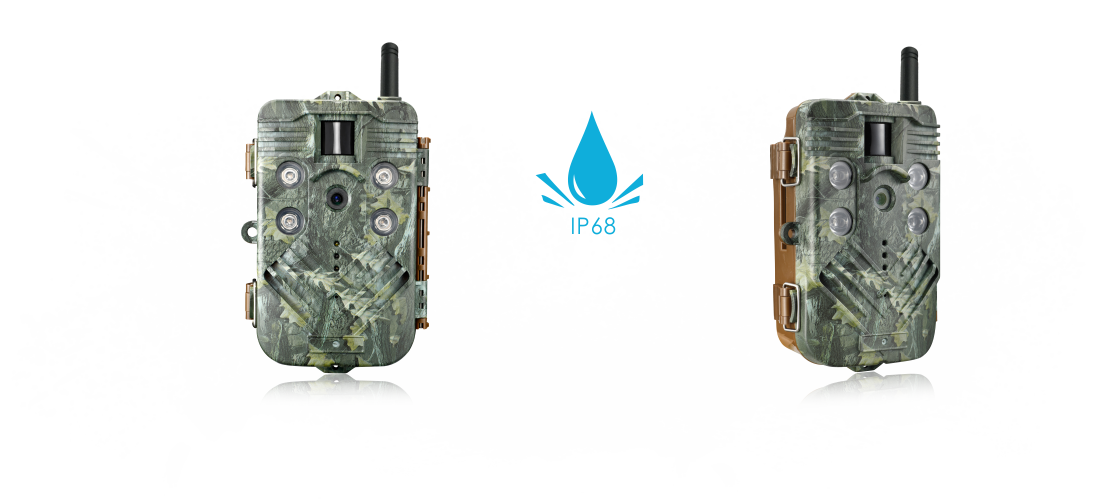

Integrated protection design in harsh environments.
Dustproof, Dampproof and waterproof. Protection level of IP68

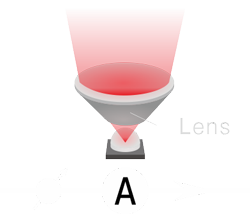

Using 4ea 940nm high bright LED, ultra-low red exposure, constant current drive,
light source homogenization. Makes the light more uniform,stable and reliable.

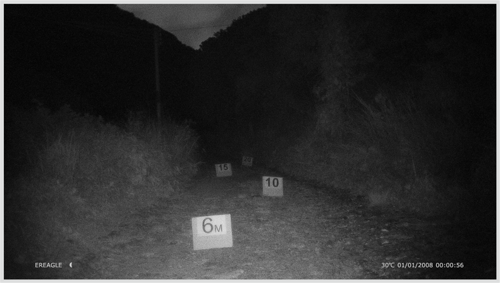

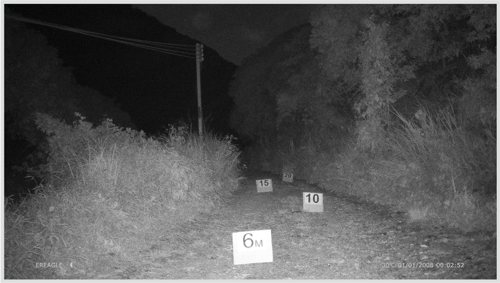

Constant current drive, light source homogenization Spectrogram Light angle

Not processed (46ea, 5mm, IR LED) Processed (4ea, 1.5W, IR LED+Lens)

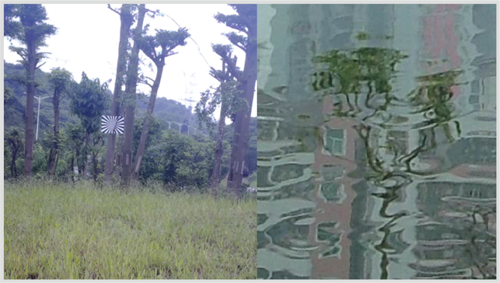

Double-sided optical penetration + waterproof coating, to prevent effecting image quality for water entering
in the glass. Effectively prevent light refraction, scattering, enhance the image anti fog ability .

Other Camera EREAGLE Camera

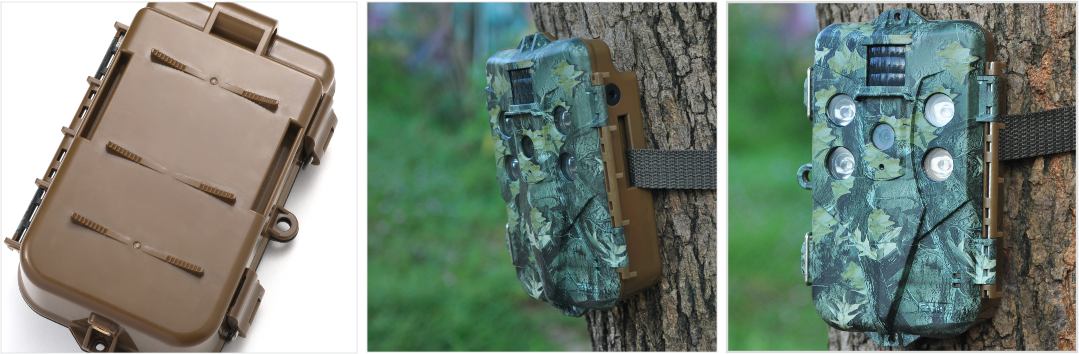

Unique arc tooth design for more solid, flexible and convenientinstallation.

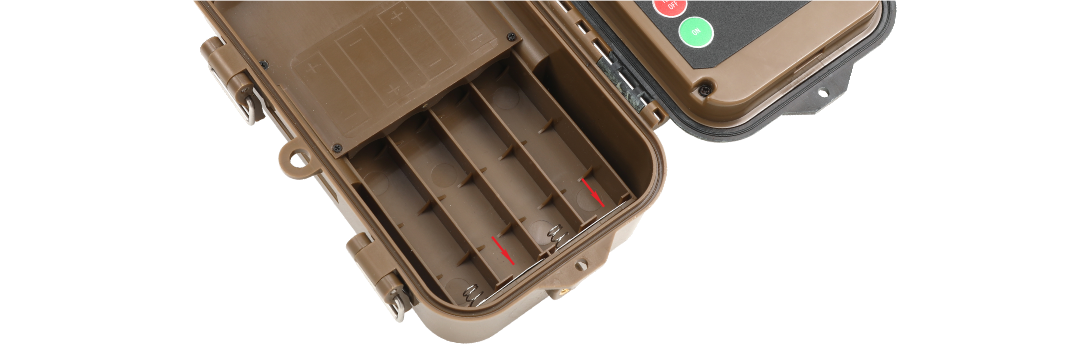

Battery anti-reverse installation design, do not worry about the battery leakage.

    Technical Specifications
PRODUCT MODEL E3H-R E3H-SR
  Image/Video/Audio
Image sensor:     5 MegaPixels 1/2.5" Near IR CMOS Image Sensor
Sensitivity (LED off):     0.001 Lux / F1.2 / 30IRE (LED OFF)
Effective Pixels:     2590×1944 / 5034.9K (4:3)
Photo definition:      30M(6400×4800)  /  20M(5120×3840)  /  12M(4000×3000)  /  8M(3624X2448)  /  5M(2590×1944)
Shooting No.:     1-9
Video definition:     1920×1080:60FPS  /  1920×1080:30FPS  /  1280×720:60FPS  /  1280×720:30FPS  /  640×480:120FPS
Video length:     1~300s
Lens:     6.0mm HD fixed lens (H FOV:56°, V FOV:42°, F2.0)
Trigger time:     < 0.5 Sec
Shooting mode:     Photo / Video / Photo+Video / Video+Photo
Max Shooting:     OFF, 1~255
Microphone:     48dB high sensitivity sound collection
Buzzer:     2700HZ, 85dB
  Trigger Alarm
PIR Sensing Angle:     Horizontal: 50°, 2+5 area Fresnel Lens, each lens covers 10°
PIR Sensing Distance:     20M / 65.62ft (at 77°F / 25°C)
PIR Mode:     Main PIR / OFF
PIR Sensitivity:     Normal  /  windy Plateau  /  flat open  /  dense forest
Trigger Interval:     00:00-59:59 Optional (Default: 01:00)
  Environmental Data Monitoring
Temperature and Humidity:      Default internal Temperature sensor   -40~85°C(±0.5°C) / 10~95%(±2%RH), External Temperature and Humidity sensor
Pressure:     Not Supported   300~1100hPa (±0.06hPa)
Altitude:     Not Supported   Altitude:9000~-500M, Pressure+GPS
Positioning System:     Mobile phone APP setting(Auto)
Ambient Illuminance:     Not Supported
Noise Decibel:     Not Supported
  WIFI Communication
Connection Band :     2.4~2.484GHz ISM Band, High gain external antenna.
Standards:     802.11b/g/n, 802.3, 802.3u
Transmitting Power:     -19dBm (Max)
Receiver Sensitivity:     11Mbps-86dBm@8%,54Mbps -73dBm@10%,130Mbps,-66dBm@10%
Transmission Speed:     <150Mbps
Wireless Encryption:     WEP / WPA / WPA2
Transmission Mode:     WIFI hotspot mode
Transmission Distance:     30M (Open Environment)
  Night vision
Light Source:     Highlight IR LED, 940nm, Constant Current: 700mA
IR Flashlight Distance:     30M
Day/Night Mode:     Day/night, Auto Switching, Built-in IR-CUT
  User Interface Stamp and File Type
Stamp:     ON / OFF; Camera Name, Shooting date, Moon phase, Temperature and humidity, pressure, Battery Power
File Type:     Camera Name, Shooting date, Moon phase, Temperature and humidity, pressure, Battery Power
  Timer
Timer Switch:     ON / OFF
Time Interval Setting:     Three periods and weekly repetitions can be set daily.
Timer Interval:     0~24 Hour
  Product Safety
Hardware Security Configuration:     Padlock installation, Anti-theft lock hole
System Security:     Connect the camera with a password.
Battery Protection :     Battery anti-backconnection protection, Warning prompt when installation error occurs.
Low Power Protection:     Battery power is less than 10%, automatic power-off protection.
Protection for No Operation:     Test mode 120 seconds no operation, auto change to Detection Mode.
  After Connecting to WIFI, 60 seconds no operation is auto change to Detection Mode.
  Data Storage
Storage Medium:     TF Card, 4G~64G (Class 10)
TF Card Cycle Save:     ON / OFF
 TSCAMERA APP
System Requirements:     IOS 7.0 or Android 4.4 above.
Real-time Video Preview:     Only supports AP mode, Direct Video Connection, easy to install and test.
APP Function:     Installation target, parameter setting, time synchronization, shooting test, power warning, TF card warning, PIR test, full screen preview
Quick Parameter Setting:     Supported
Online Data Management:    Video, Photos, Events: Support online Viewing, Deletion, Download
  Power Supply and Power Consumption
Battery Powered:     4A×AA /8A×AA Battery (1.2V/1.5V/3.7V)
Standby Time:     10~14 Month (8×AA /1.5V)
External Power Supply:     DC 6V / 2.0A
Standby Power:     <80uA (0.00008A / 6V)
Power Consumption:     200 mA (800mA LED ON)
  Others
Connector:     DC Input, TF Card, USB Port, Power Button, SMA Antenna Port
Installation Mode:     Strap, Tripod nail
Operating Temperature Humidity:     -30°C~+70°C / 30% ~ 90%RH
Storage Temperature Humidity:     -40°C~+85°C / 0% ~ 90%RH
Waterproof Grade:     IP68 (Dust proof / Submerging test)
Dimension:     152 x101 x 66mm
Net Weight:     266g
Gross Weight:     485g
Certificate:     FCC, CE, RoHS

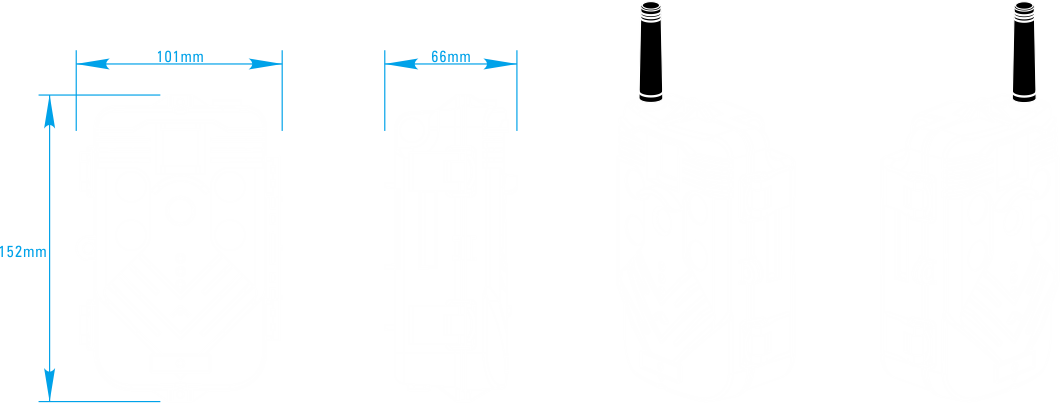

    Dimensions
